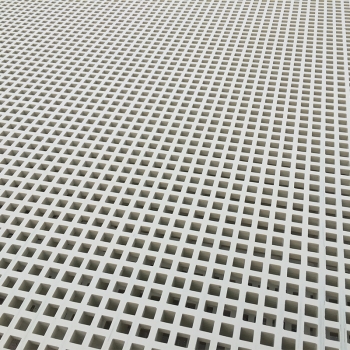

GRP GRATING
Molded Fiberglass Reinforced Plastic (FRP) offer the best available combination of strength, durability and ease of installation.
contactMolded Fiberglass Reinforced Plastic (FRP) offer the best available combination of strength, durability and ease of installation. The compression-molded grating system originated in 2020 by Mikko composite is the only system of it’s kind in the world.
TYPICAL PROPERTY
| Flexural Strength (ASTM D-790) | 72 F | 70,000 Psi |
| Flexural Modulus (ASTM D-790) | 72 F | 3.80 x 106 Psi |
| Compressive Strength (ASTM D-790) | 72 F | 35,000 Psi |
| IZOD Impact Strength (ASTM D-790) | 72 F | 29,6 ft. lb |
PANEL SIZES
KS – 1510 1″ thick x 48″ wide x 96″ long
KS – 1515 1 1/2 ” thick x 48″ wide x 96″ long

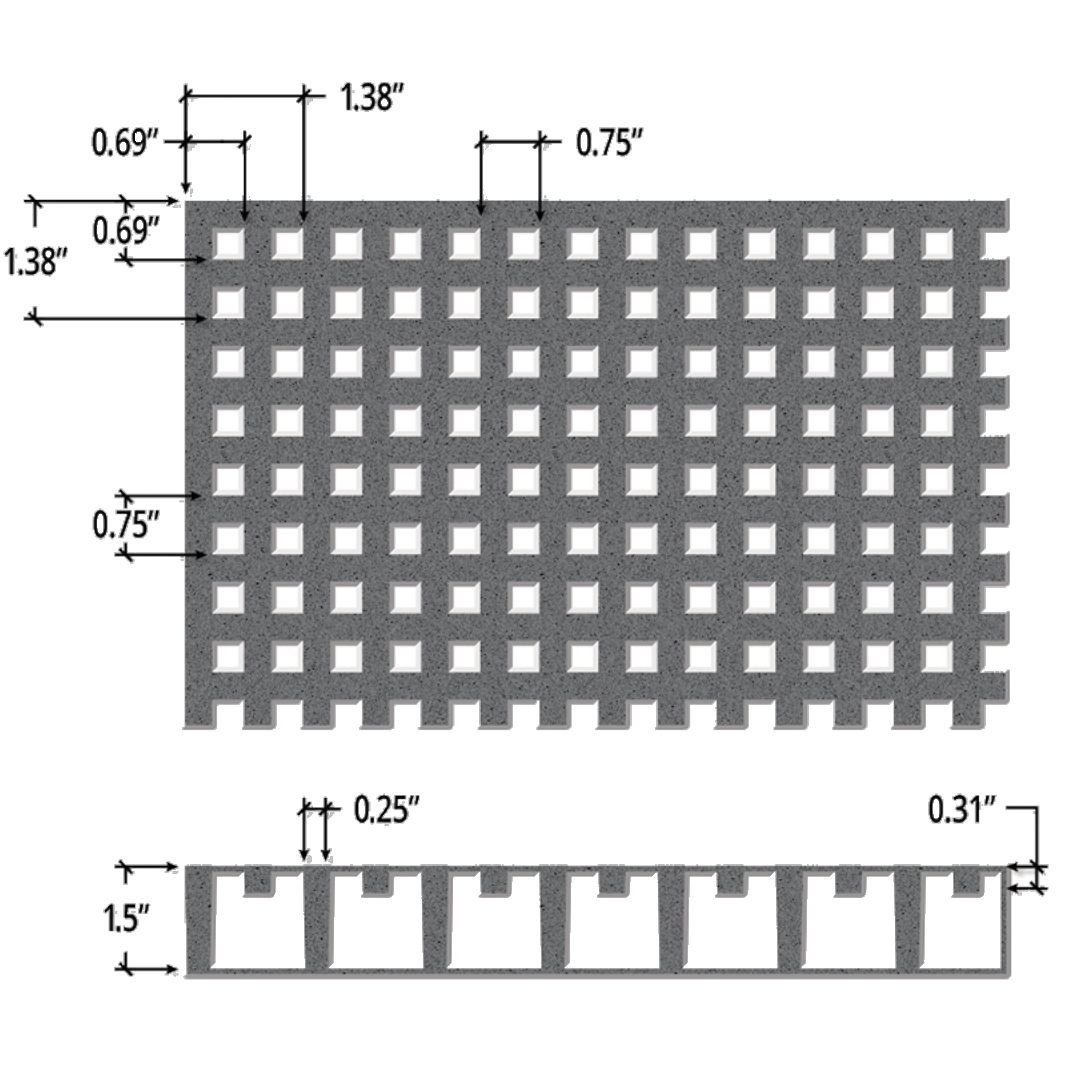

MIKKO SQUARE-MESH GRATING
Molded, 1 1/2″ x 1 1/2″ square-mesh grating offers maximum design and installation
versatility because bearing bars span in both directions Mikko square-mesh can be
PANEL WEIGHT & OPEN AREA
KS – 1510 100 lbs. per panel -60 % open Area
KS – 1515 160 lbs. per panel -60 % Open Area
